AU Patient Summary Implementation Guide
0.1.0-preview - Preview Australia flag

This page is part of the AU Patient Summary (v0.1.0-preview: QA Preview) based on FHIR (HL7® FHIR® Standard) R4. No current official version has been published yet. For a full list of available versions, see the Directory of published versions

AU Core Data for Interoperability

Page standards status: Informative

Australian Core Data for Interoperability (AUCDI) is the product of a national clinician focussed requirements gathering project operating as part of the Sparked AU FHIR Accelerator. The AUCDI outputs form a set of data requirements to be considered and referred to as part of the development and definition of AU Patient Summary.

AUCDI Release 2 Patient Summary component – Draft for Community Comment has been released for review. This component version of AUCDI contains only Patient Summary content to allow a focused review and support an iterative development process of AUCDI. A full AUCDI Release 2, which supersedes AUCDI Release 1, will be published in June 2025, containing all of the content from AUCDI Release 1 plus the content from this component release.

AUCDI and AU Patient Summary Development Approach

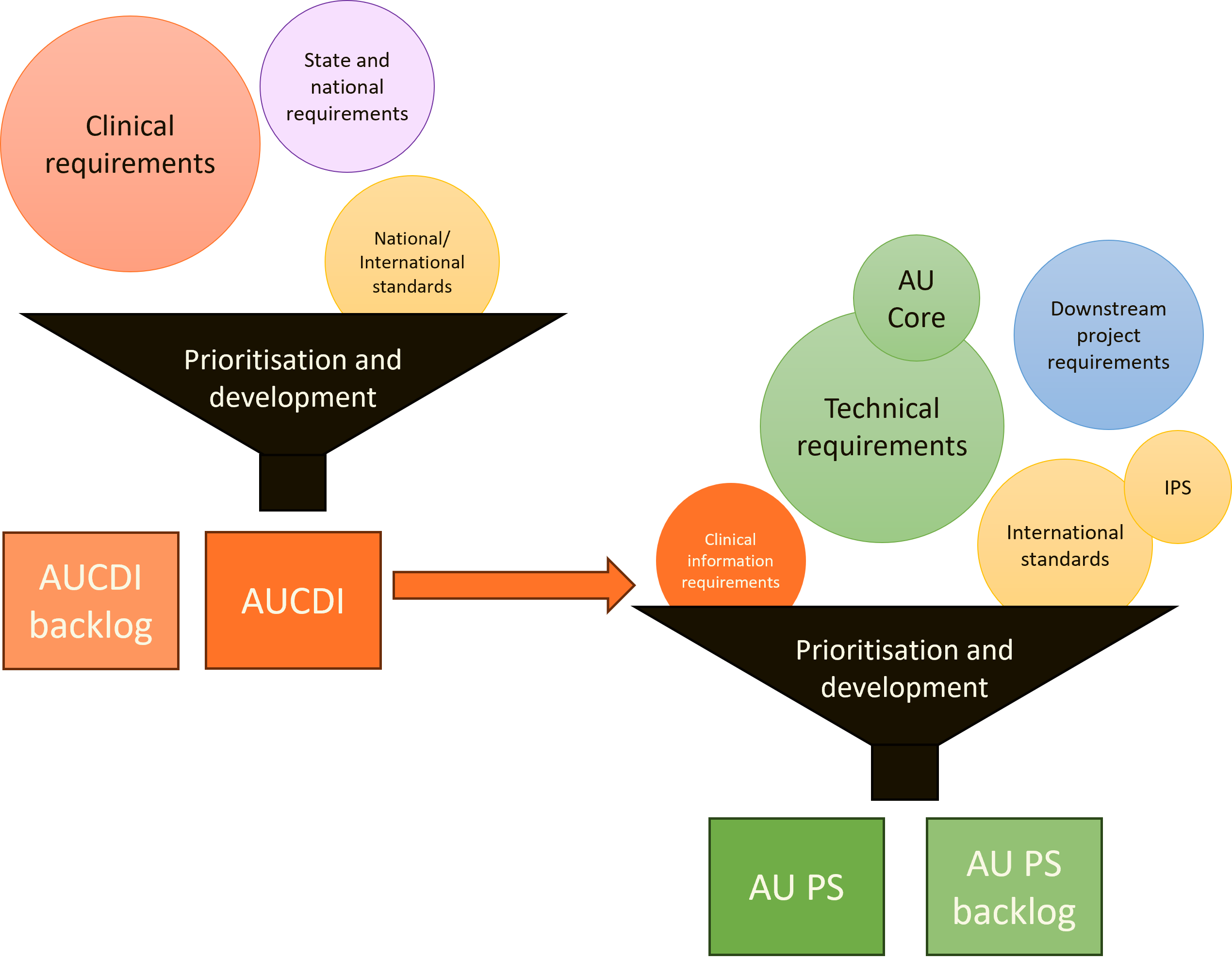

Figure 1: AUCDI and AU Patient Summary Development Approach

An interpretation of AUCDI clinical information requirements through community consensus is undertaken to define support for the exchange of clinical and administrative data within technical constraints. Note that:

  • In any particular release, AU Core or AU Patient Summary may not cover all AUCDI data concepts, especially when AUCDI data concepts are not supported in existing systems.
  • AU Patient Summary includes exchange for concepts that are commonly implemented in systems and not included in AUCDI e.g. Patient.name, Practitioner.identifier, Procedure.encounter.
  • AU Patient Summary includes exchange for clinical concepts not yet included in AUCDI, e.g. MedicationRequest, which are included through reference to IPS or AU Core
  • AU Patient Summary includes data elements not included in AUCDI that are required to make FHIR implementable e.g. Observation.status, MedicationRequest.intent, Provenance.

AUCDI mappings into AU Patient Summary

The table below shows the relationship between the AUCDI Data Groups and Elements included in AUCDI Release 2 Patient Summary component – Draft for Community Comment, AU Core profiles, and AU Patient Summary profiles.

Column attribute descriptions are as follows:

  • AUCDI Data Group: The name of the AUCDI data group.
  • AUCDI Data Element: The name of the AUCDI data element within an AUCDI data group.
  • AU Core Profile(s): The title of the AU Core profile relevant for exchange.
  • AU Patient Summary Profile(s): The title of the AU Patient Summary profile relevant for exchange.
  • FHIR Path: The FHIRPath expression to the FHIR element relevant for exchange, i.e. the FHIR element that can be populated with data from a source system that represents the clinical concept expressed in the AUCDI data element.
  • Comment: Additional information about the mapping including an explanation of where an element or group is not yet mapped.
AUCDI Data Group AUCDI Data Element AU Core Profile(s) AU Patient Summary Profile(s) FHIR Path Comment
Adverse reaction risk summary Substance name AU Core AllergyIntolerance AU PS AllergyIntolerance AllergyIntolerance.code
Date/time of onset of first reaction AU Core AllergyIntolerance AU PS AllergyIntolerance TBD This data element is added to AUCDI R2; work is underway to map to AU Core.
Manifestation AU Core AllergyIntolerance AU PS AllergyIntolerance AllergyInterolance.reaction
Severity of reaction AU Core AllergyIntolerance AU PS AllergyIntolerance TBD This data element is added to AUCDI R2; work is underway to map to AU Core.
Comment AU Core AllergyIntolerance AU PS AllergyIntolerance AllergyIntolerance.note
Last updated - - - This AUCDI element is a Future Candidate Requirement Under Consideration. Future versions of AU Core will develop and test approaches to addressing Last Updated.
Problem/Diagnosis summary Problem / Diagnosis name AU Core Condition AU PS Condition Condition.code
Body site/laterality AU Core Condition AU PS Condition Condition.code
Date/time of onset AU Core Condition AU PS Condition TBD This data element is added to AUCDI R2; work is underway to map to AU Core.
Date/time of resolution AU Core Condition AU PS Condition TBD This data element is added to AUCDI R2; work is underway to map to AU Core.
Status AU Core Condition AU PS Condition Condition.clinicalStatus
Comment AU Core Condition AU PS Condition Condition.note
Last updated - - This AUCDI element is a Future Candidate Requirement Under Consideration. Future versions of AU Core will develop and test approaches to addressing Last Updated.
Procedure completed event Procedure name AU Core Procedure AU PS Procedure Procedure.code
Clinical indication AU Core Procedure AU PS Procedure Procedure.reasonCode | Procedure.reasonReference[x]
Body site/laterality AU Core Procedure AU PS Procedure Procedure.code
Date performed AU Core Procedure AU PS Procedure Procedure.performed[x] | Procedure.performedDateTime
Comment AU Core Procedure AU PS Procedure Procedure.note
Vaccination administered event Vaccine name AU Core Immunization AU PS Immunization Immunization.vaccineCode
Sequence number AU Core Immunization AU PS Immunization Immunization.protocolApplied.doseNumber[x]
Date of administration AU Core Immunization AU PS Immunization Immunization.occurenceDateTime
Comment AU Core Immunization AU PS Immunization Immunization.note
Medication use statement Medication name AU Core MedicationStatement | AU Core Medication AU PS MedicationStatement | AU PS Medication MedicationStatement.medication[x] | Medication.code See the Medicine Information guidance page in AU Core.
Clinical indication AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.reasonCode | MedicationStatement.reasonReference
Strength AU Core MedicationStatement | AU Core Medication AU PS MedicationStatement | AU PS Medication MedicationStatement.medication[x] | Medication.code | Medication.ingredient
Form AU Core MedicationStatement | AU Core Medication AU PS MedicationStatement | AU PS Medication MedicationStatement.medication[x] | Medication.form
Dose amount AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.dosage.doseAndRate
Route of administration AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.dosage.route
Dose timing AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.dosage.timing
Comment AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.note
Date of assertion AU Core MedicationStatement AU PS MedicationStatement MedicationStatement.dateAsserted
Sex and gender summary Sex assigned at birth AU Core Patient AU PS Patient Patient.extension.where(url='http://hl7.org/fhir/StructureDefinition/individual-recordedSexOrGender') The Person Recorded Sex or Gender extension is profiled by AU Core Sex Assigned At Birth (RSG) to represent the concept of Sex assigned at birth.
Gender identity AU Core Patient AU PS Patient Patient.extension.where(url='http://hl7.org/fhir/StructureDefinition/individual-genderIdentity')
Pronoun/s AU Core Patient AU PS Patient Patient.extension.where(url='http://hl7.org/fhir/StructureDefinition/individual-pronouns')
Last updated - - - This AUCDI element is a Future Candidate Requirement Under Consideration. Future versions of AU Core will develop and test approaches to addressing Last Updated.
Last menstrual period assertion Date of onset TBD TBD TBD This data group is added to AUCDI R2 and does not yet have an agreed mapping to AU Core. Outcomes from the scoping workshops for AU Core R2 and Patient Summary R1 indicate that this data group will be deferred to a later release.
Certainty TBD TBD TBD
Date of assertion TBD TBD TBD
Pregnancy assertion Pregnancy assertion TBD TBD TBD This data group is added to AUCDI R2 and does not yet have an agreed mapping to AU Core. Outcomes from the scoping workshops for AU Core R2 and Patient Summary R1 indicate that this data group will be deferred to a later release.
Justification TBD TBD TBD
Date of assertion TBD TBD TBD
Estimated date of delivery summary EDD by cycle TBD TBD TBD This data group is added to AUCDI R2 and does not yet have an agreed mapping to AU Core. Outcomes from the scoping workshops for AU Core R2 and Patient Summary R1 indicate that this data group will be deferred to a later release.
EDD by ultrasound TBD TBD TBD
Last update TBD TBD TBD
