HL7AU - FHIR WG : 2017-06-08 Secure Message TWG Workshop

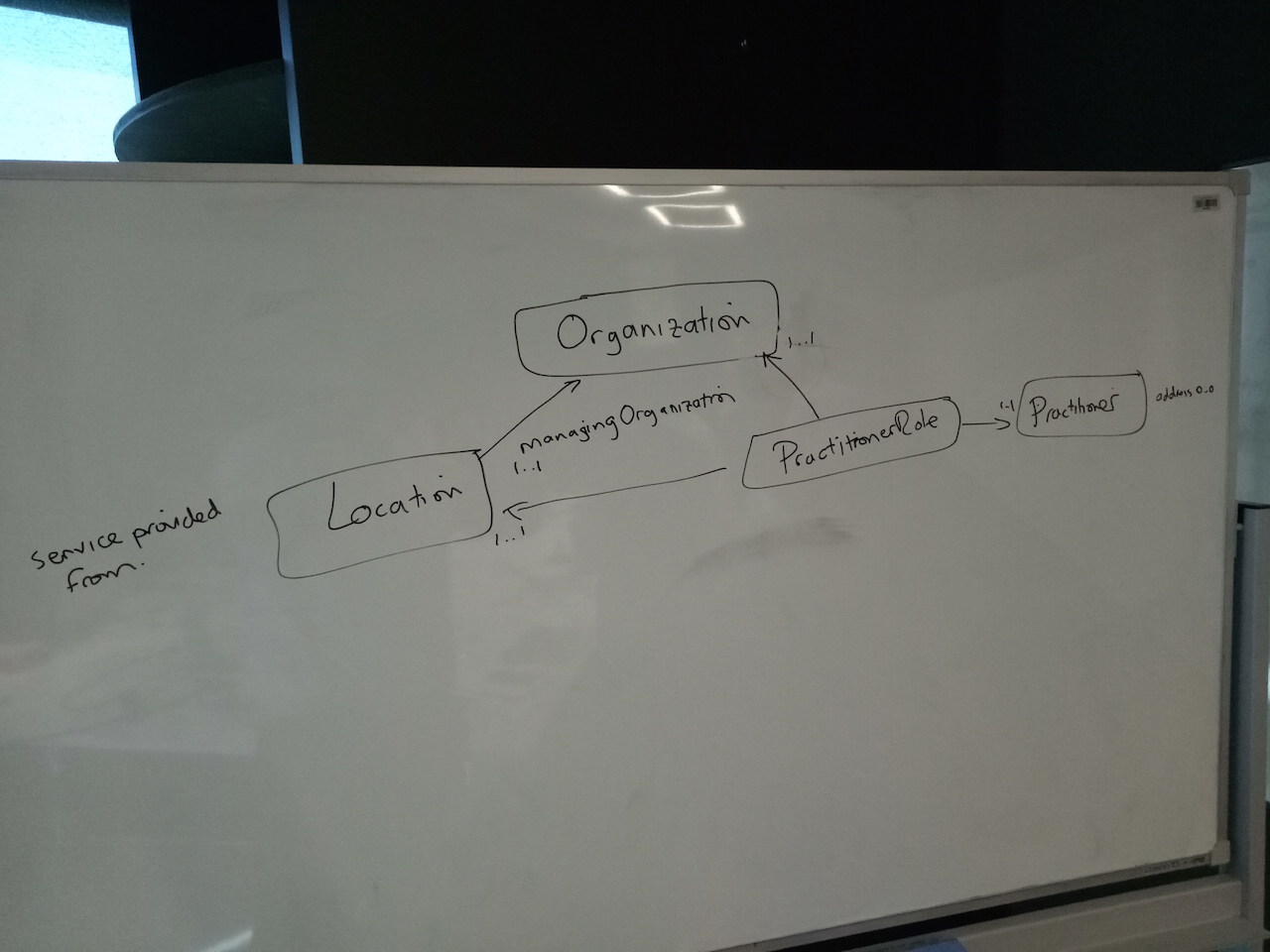

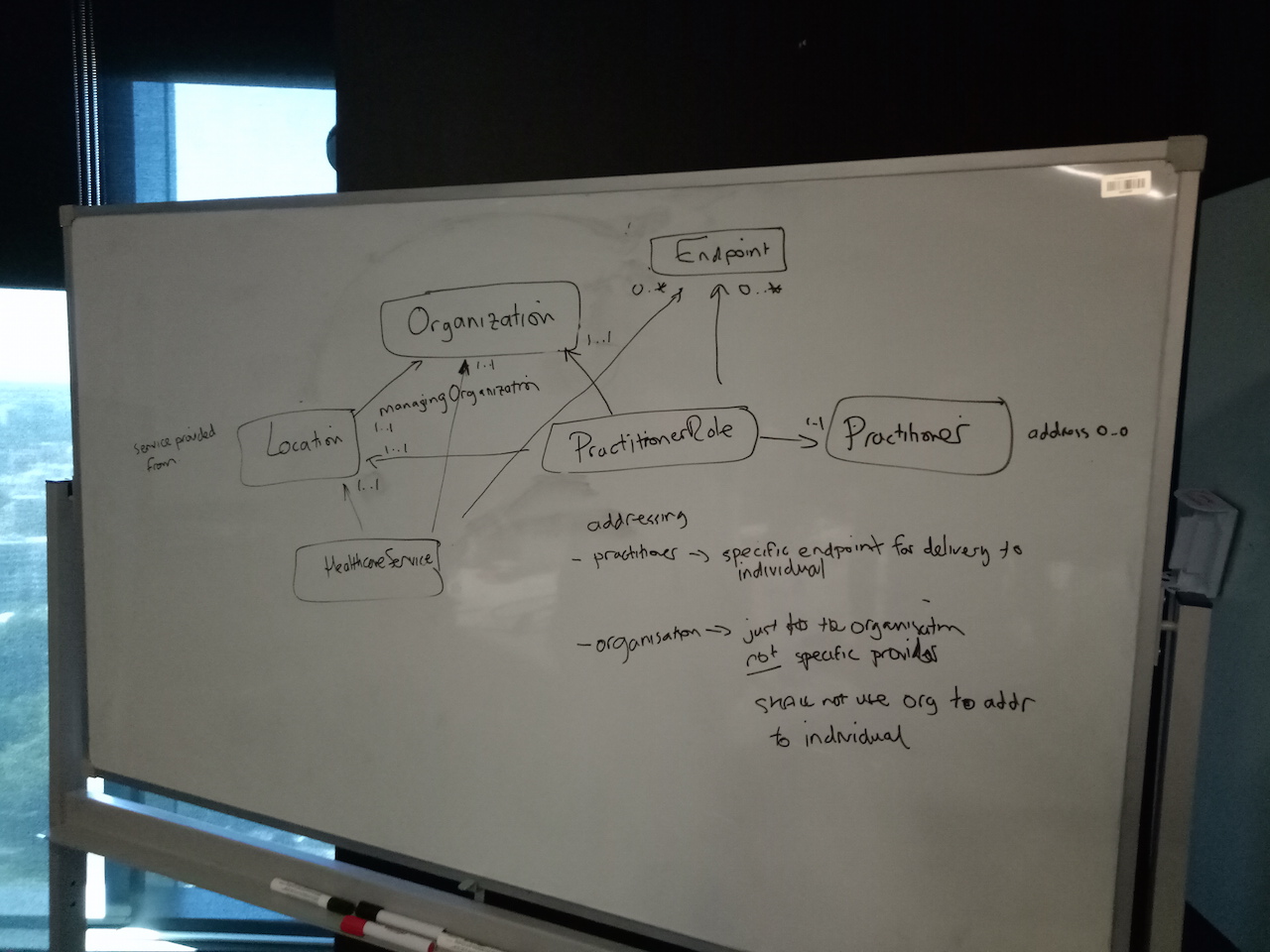

• Organization hierarchy is allowed but not required
• Location must have  1..1 Organization
• PractitionerRole must have 1..1 Organization
• PractitionerRole must have 1..1 Practitioner
• PractitionerRole must have 1..1 Location
• HealthcareService must have 1..1 Organization
• HealthcareService must have 1..1 Location
• Organization has 0..0 Endpoint
• HealthcareService may have 0..* Endpoint
• Location must have  0..0 Endpoint
• ProviderRole may have 0..* Endpoint

• Practitioner must have 0..0 address
• Endpoint Extension: Receiving Application
• Endpoint Extension: Receiving Facility (HD)
• Endpoint need Extension for certificate (needs discussion)
• Endpoint.connectionType - SMD will use  already defined http://ns.electronichealth.net.au/browse-service-interface.html; require one code of this system
  • http://ns.electronichealth.net.au/smd/intf/SealedImmediateMessageDelivery/TLS/2010
  • http://ns.electronichealth.net.au/smd/intf/SealedMessageDelivery/TLS/2010
  • http://ns.electronichealth.net.au/smd/intf/SealedMessageRetrieval/TLS/2010
  • http://ns.electronichealth.net.au/smd/intf/TransportResponseDelivery/TLS/2010
  • http://ns.electronichealth.net.au/smd/intf/TransportResponseRetrieval/TLS/2010

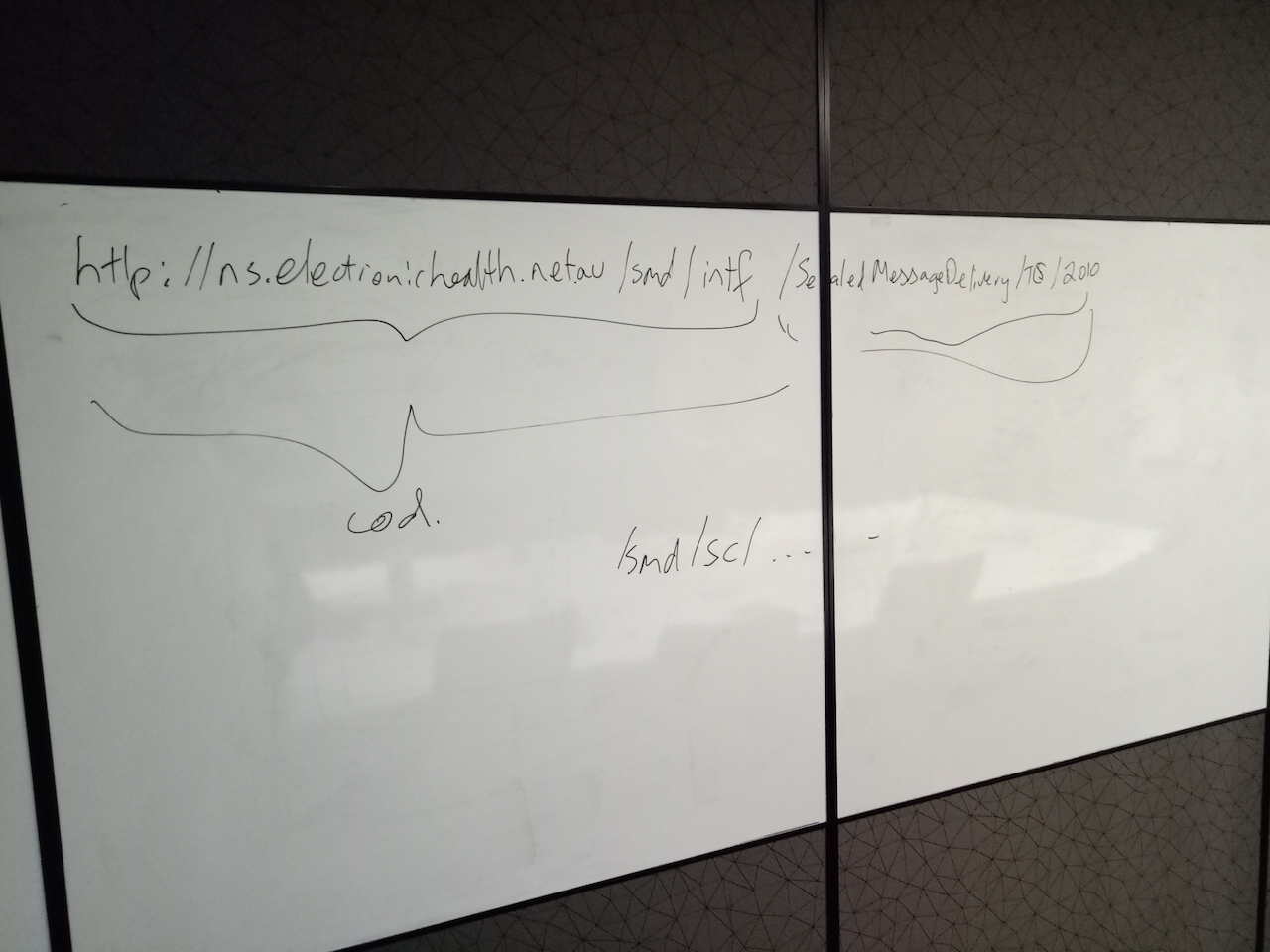

  • Do this as Coding e.g.

    { system="http://ns.electronichealth.net.au/smd/intf", code="http://ns.electronichealth.net.au/smd/intf/SealedMessageDelivery/TLS/2010"}



• Endpoint.payloadType - use already defined http://ns.electronichealth.net.au/browse-service-category.html; require one code of this system

         { system="http://ns.electronichealth.net.au/smd/sc", code="??"}

• Endpoint.payloadMimeType - no constraints for SM

• Note: concerns on HealthcareService must have 1..1 Location (too constrained?)
• Note: could publish endpoints on HealthcareService and/or Location as desired by advertiser

• Layer a exclusion layer IG (explicit PD) on top of compliant PD requirements IG
• Need a working party on specialty/role code for PractitionerRole; service type coding HealthcareService
